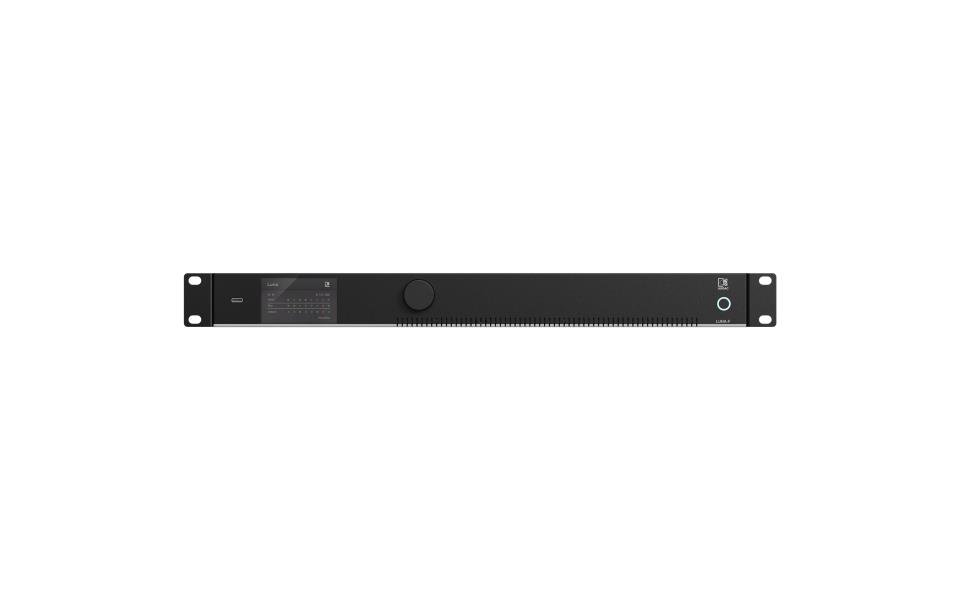

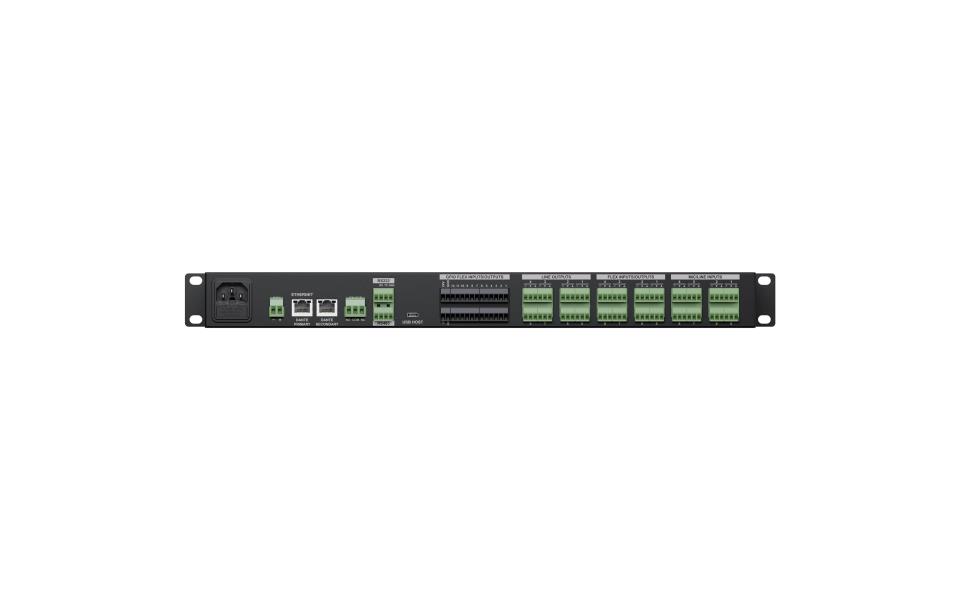

Digitalni audio procesor Audac LUNA-F

Šifra proizvoda: 48985, stanje skladišta: na upit

Detaljni opis

A scalable mixture of analogue and network channels
8 Mic/line inputs, 8 flex inputs/outputs and 8 outputs
24 fully flexible GPIO in- or outputs
16 x 16 included Dante™/AES67 channels (optional expandable up to 64 x 64)
Compatible with all Dante™/AES67 paging/in & output devices
32 mono or 16 stereo flexible zones
4 AEC channels (optional)
Works out of the box thanks to easy scalable architecture
Single design and control platform - AUDAC Touch™
AudioBridge for flexible audio transfer for all inputs & outputs
Auto-update (OTA) feature

LUNA-F is the next-generation audio matrix processor, offering highly flexible and scalable system solutions for audio distribution from medium-sized to the l enterprise solutions. The internal structure provides unseen flexibility and a vast number of possibilities for an audio distribution system. The powerful DSPs (dual SHARC) combined with 32-bit ADC and DAC converters allow the most extensive signal processing with superb audio quality.
It includes 12 Mic/Line Inputs, 8 flex channels that can be switched between 8 Mic/Line Inputs or Line level output, and 8 Line level outputs. Additionally, up to 64x64 Dante™/AES67 I/O Channels are available with primary and secondary ethernet ports, allowing the integration of the system with any Dante™/AES67 compatible audio over IP I/O units with redundancy.
The flexible architecture allows fully flexible mapping of the signal path to any of the 32 mono or 16 stereo zones, while the powerful DSP resources provide unique processing features on all input channels, output channels, and zones. Dante-enabled paging microphones and smart wall panels make the complete system solution even more flexible and unique.
The internal Linux core brings the entire control of this system and family members together, while also accommodating messaging, event scheduling, and implementation possibilities for further Linux-based functions. Besides the full network control, other options like RS-232 and RS-485 are also implemented for third-party control. For your system solution, you can easily incorporate the control of the entire system and compatible devices into your user interface by using our simplified design and system control platform, AUDAC Touch™

Težina proizvoda: 3 Kg
Dimenzije: 482x44x335 mm
Jamstvo: 3 godine
