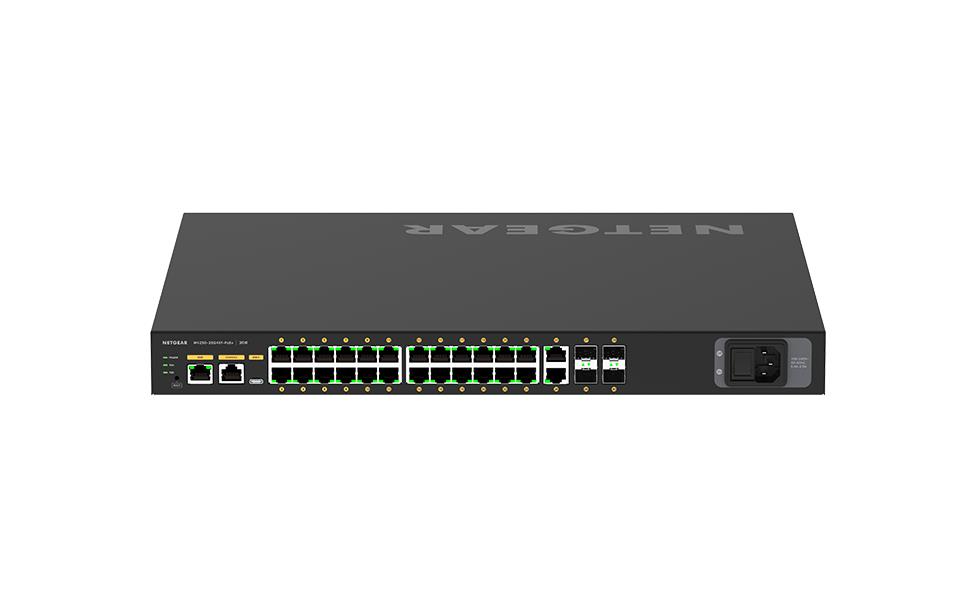

24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

Pre-configured for out-of-the-box use
NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations.

Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles.

Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license.

Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed.

Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.

Rackmount versatility
1U, 200mm deep rackmount with all power and Ethernet ports on the back.

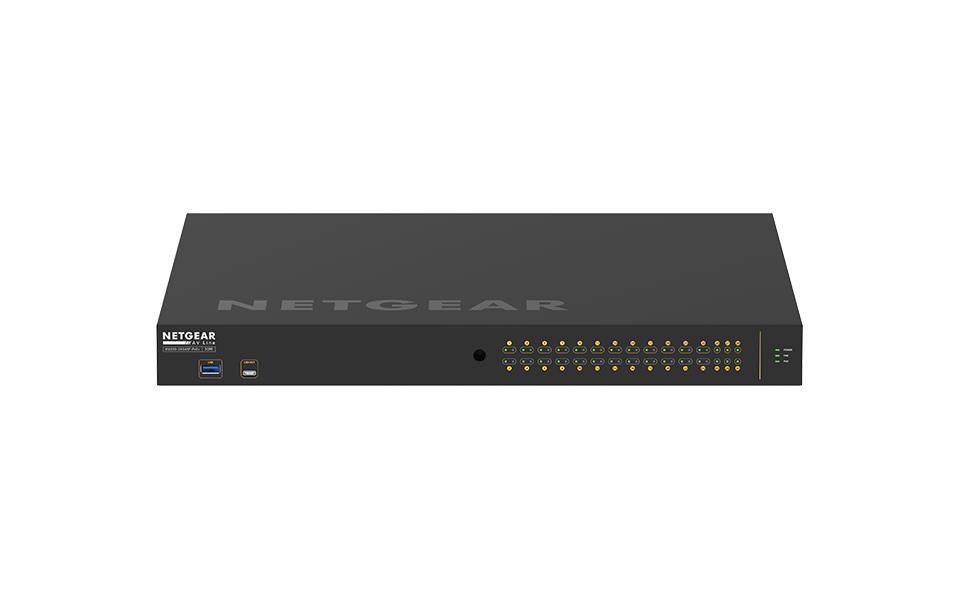

Reversed mounting possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables.

Universal mounting availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes.

Adjustable fan functionality
Quiet mode with 42dB@25?C, or fanless mode when PoE load and temperature allow.

Multi-switch link aggregation
24x1G PoE+ with 480W PoE budget with 2x1G additional ports and 4xSFP+ 10G fiber uplinks.

Layer 2/Layer 3 Switching
Common Layer 2 and Layer 3 switching engine across all M4250 models.

Control methods abound
Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series.

Standard network features
Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2.
