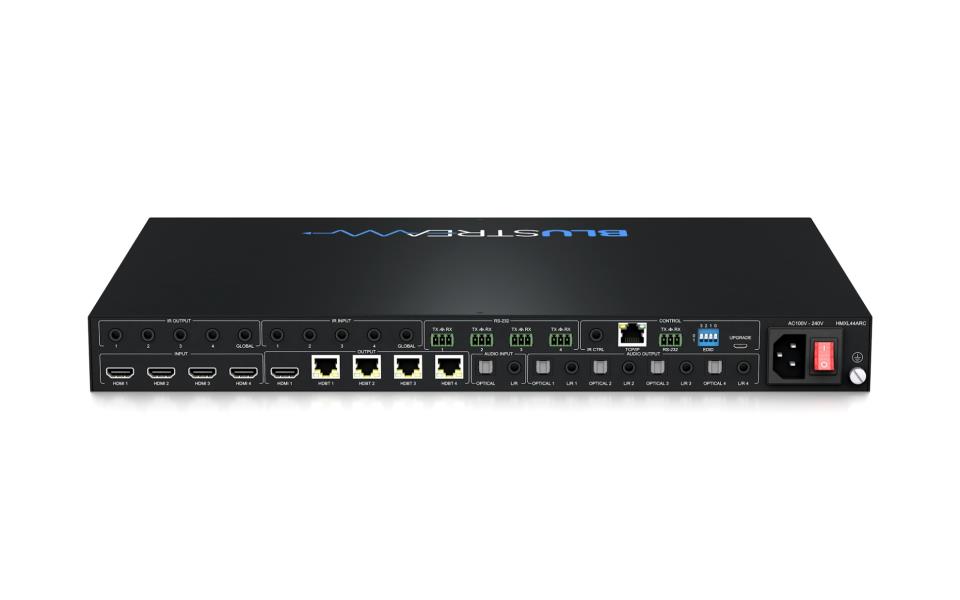

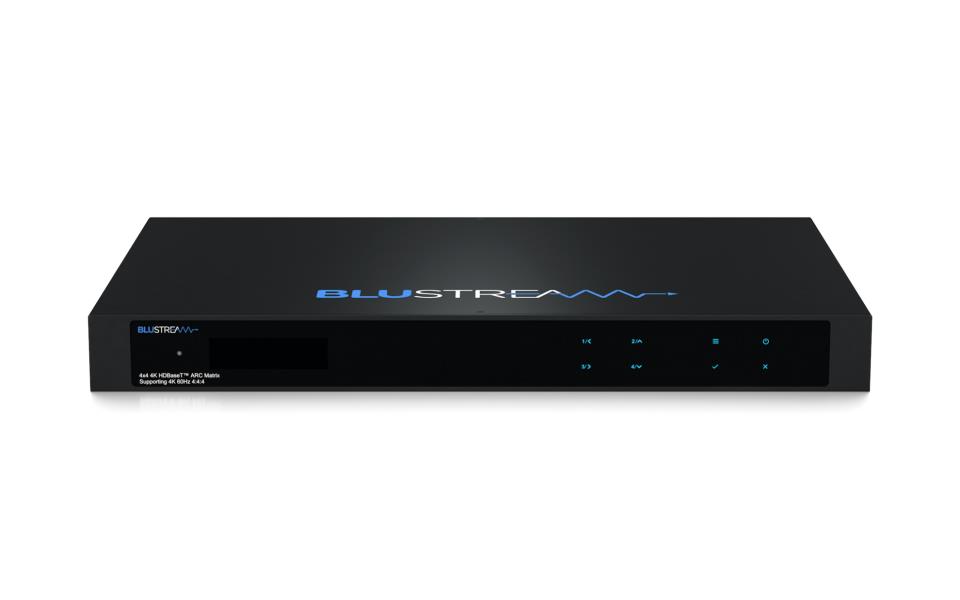

Matrica HDBaseT Blustream HMXL44ARC

Šifra proizvoda: 49632, stanje skladišta: na upit

Detaljni opis
Specifikacije

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K • UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m
• 14x4 Audio Matrix independently controllable from video. Audio source inputs include:
- 4x audio breakout from HDMI source inputs
- 4x audio breakout from zone outputs
- 4x ARC from zone outputs*
- 1x Optical and 1x Analogue audio input
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Web interface module for control and configuration of matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Supplied with Blustream IR receivers and emitters
• Advanced EDID management and HDCP 2.2 compliant
• Supplied with 4x RX70CS HDBaseT Receivers

Proizvođač	Blustream
Tip	Matrični preklopnik
Ulazi	4x HDMI, 4x RS232, 4x IR
Izlazi	1x HDMI, 4x HDBaseT, 4x RS232, 4x IR, 4x audio
Propusnost	18Gbps
Podržani signali	do 4K
Kontrola	RS232, RS485, RJ45, EDID
Snaga	-
Napajanje	1x 24V/3.5A DC
Dimenzije	436x44x300 mm
Težina	2,8 Kg
Jamstvo	3 godine
