Modularni procesor Xilica Solaro FR1

Šifra proizvoda: 40423, stanje skladišta: na upit

Digitalni procesor Xilica Solaro FR1-Frame

Detaljni opis
Specifikacije

Ultra high-performance, dual-core Linux processor with capacitive touch controls and a front-panel OLED display.
16 user-configured card slots, with ultimate flexibility to mix and match I/O options for every installation.
Wide range of I/O options including analog input/output, AES/EBU, GPIO, Dante, and AEC — with a maximum of 32 audio channels and 64 GPIO channels.
Supreme audio quality with selectable 48/96kHz sampling, a 40-bit floating point processor, and premium grade mic pre-amps.
Exceptionally easy to control, through PC/Mac, Xilica XTouch touch surfaces, complimentary iOS & Android apps, and third-party controllers.

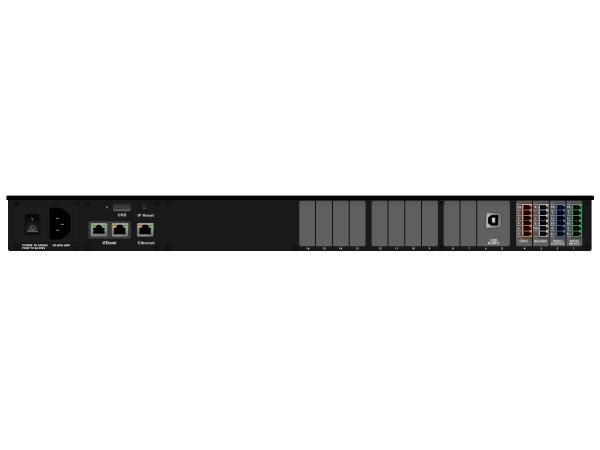

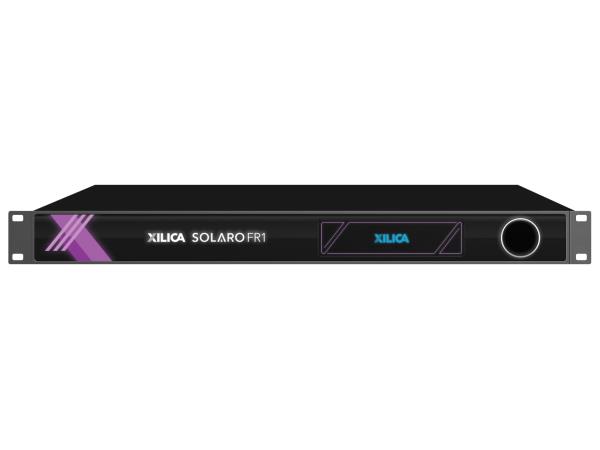

Full rack 19” 1RU processor mainframe with sixteen user-configured card slots (blank card slots included). Uses the same I/O PC-Plug-in Cards as the QR1 & XIO. Selectable 48 & 96kHz sampling rates. Integrated license-activated AEC. Front panel OLED display with jog wheel. Rear panel includes an Ethernet module with RJ45 connector and internal power supply connection.

Unleash your creativity and customize your I/O count with the new, all-modular, ultra-high-performance Solaro FR1 DSP. From it’s ultra-powerful dual core processor, new-generation Linux® operating system and easy-to-configure open-architecture framework, to its 16 individual field-swappable card slots — Solaro FR1 is designed to allow integrators, specifiers and end-users unlimited creativity.

Solaro FR1 was designed from the ground-up to offer unbeatable power and performance. From it’s ultra-powerful dual core processor, new-generation Linux® operating system and easy-to-configure open-architecture framework, to its 16 individual field-swappable card slots — Solaro FR1 is designed to allow integrators, specifiers and end-users unlimited creativity. Premium grade microphone pre-amps, selectable 48kHz or 96kHz sampling rates, and advanced audio tools such as FIR filters make the Solaro FR1 a supreme choice for applications requiring high-fidelity audio quality, especially when paired with its 40-bit floating-point processor. Additionally, Solaro FR1 acts as a unique cost-saver to futureproof installations – should requirements change in the future, field-swappable cards can be changed for a different configuration, or new I/O optionality can be added —either through unused card slots, or through the addition of an XIO expansion product. Plus, a user-installable rear module is available to provide 64×64 channels of legendary Dante networked audio.

Proizvođač	Xilica
Tip	DSP
Procesor	40-bit floating point
Sampling rate (uzorkovanje)	48 / 96kHz (selectable)
Delay (podešenje kašnjenja)	4 / 2ms (48 / 96kHz)
Konekcije	RJ45 Ethernet
Napajanje	90-240 VAC (50-60Hz)
Dimenzije	483x44x305 mm
Težina	5 Kg
Jamstvo	24 mjeseci

Redovna cijena

Cijena bez PDV:	na upit
Cijena sa PDV:	na upit
